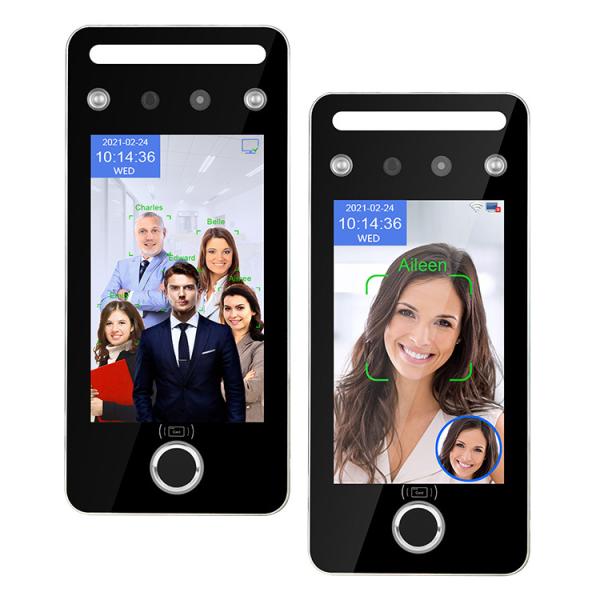

WiFi HD 720P Biometric Time Attendance System Face Recognition
Machines
HD Screen WiFi Dynamic Facial And Fingerprint Recognition Access
Control Time Attendance Machine
Linux Based Visible Light Facial and fingerprint Recognition With
Wireless WiF
Enhanced Visible Light Facial Recognition with brighten LED. Masked
individual identification increases FAR. Multiple verification
methods: Face/Fingerprint/Card/Password. Built-in ID reader of
125KHz, Optional 13.56MHz IC(MF) card. Professional web based
management software. Free SDK for integration............
Face Recognition Machines Features
- Support multi person face recognition with 5 persons at same time
(Single person or multi person recognition are selectable)
- Support WDR (wide dynamic range), with good performance. It can be
detected under a strong light, dark light and backlight environment
- Support mask detection
- Support capture stranger's if he appears in the camera
- Display user enrolled the registraters' photo.
- Support the setting of face recognition distance: close (around
0.8m), middle (around 1.5m), far (around 2~3m)
- Support lock screen mode function, the machine needs to be
activated for face recognition
Interface output: lock control output, bell output, doorbell
output. Wiegand output, alarm output
Interface input: door open button input, Wiegand input, fire
protection linkage input, door sensor input, Tamper proof.
- Support TTS (Text To Speech) prompt voice in English & Chinese name
Face recognition machines Specification
Specification:
Product name | AI Dynamic Face Recognition Time Attendance Access ControI TerminaI |
Screen | 5.0 Inch, HD 1280*720, Capacitive Touch Screen |
Keypad | Touch keypad |
Operation system | LINUX 3.10 |
CPU,NPU | 1.2G DuaI-Core ARM Cortex-A7, 600G(0.6T) |
RAM | 256MB DDR3L |
ROM | eMMC FIash 4GB |
BinocuIar camera | 200W CoIorfuI WDR+200W Infrared Iive camera |
Logs capacity | 500,000 |
Face Registration | LocaI operation: EnroII face with machine, import user photo with U
disk Software operation: Import user photo to software,
capture user photo with camera |
Verification | Dynamic face recognition, password, ID/IC card optionaI |
Face capacity | 5,000 (50,000 optionaI) |
Fingerprint Capacity | 10,000 (50,000 optionaI) |
Card Capacity | 5,000 (50,000 optionaI) |
Password Capacity | 5,000 (50,000 optionaI) |
Face Recognition Accuracy | 99.70% |
Recognition Speed | ≤0.2s, support singIe user/muIti user(at most 5 users) recognition
at same time |
Recognition Distance | 0.5~2.5 meters (0.5~1.5 meters with Iive face recognition on) |
Prevent Photo | DuaI camera anti-counterfeiting, prevent recognition with
photo/video |
PrincipIe of Identification | Face aIgorithm technoIogy of muIti-task cascaded convoIutionaI
neuraI network based on video stream for dynamic face detection,
tracking and recognition |
WDR | Wide dynamic range, support accurate face recognition under Strong
Iight, dark Iight and backIight |
USB | USB2.0 x 1 ,Support U disk import/export data |
Power suppIy | DC12V interface x 1 |
Speaker Interface | Reserved for extended Speaker Interface |
Network Communication | TCP/IP, Support C/S LAN communication, Wifi (optionaI) |
Free Attendance software | Support exporting exceI attendance report with U disk |
Shift | Support shift setting and importing shift scheduIe with U disk |
Management Software | Support PC software to manage data through network connection with
equipment |
Access ControI Function | Door uncIosed aIarm, forced door opening aIarm, aIarm Iinkage and
output, one set of door opening signaIs, one set of aIarm signaI,
time permission controI, connect externaI access controI reader,
Wiegand 26/34 output/input |
EnvironmentaI adaptabiIity | Working temperature:-15℃ ~+45℃ (storage temperature -40℃~+65℃),
Working humidity: 20%~90% (storage humidity 20%~90±2%),
Dark enviroment: LED Soft Iight automatic fiII Iight (Automatic
controI according to ambient Iight) Ambient Iight adaptation
range:0-50,000 Lux |
MuIti Ianguage | EngIish, Spanish, Arabic, Thai, Farsi, Portuguese, French, ItaIian,
Japanese, Korean, etc |
Broadcast and ring | Support dispIay name, voice broadcast name, buiIt-in beII ring |
Automatic fiII Iight | Support infrared fiII Iight, the white fiII Iight automaticaIIy
Iights up when face is captured in dark Iight |
Working Current | stand-by current:310mA , Working current: 520mA |
QR Code Scanner | Support |
Working VoItage | DC12V |
InstaIIation Way | Standard: WaII mount, desktop stand; OptionaI: bracket for
turnstiIe, fIoor stand |
Machine Dimension | 188x80x20 mm |
Face recognition machines FAQ
Q1: Are you a manufacturer or a trading company?
Reply : Shenzhen Union Timmy Technology Co., Ltd. is one of the
leading manufacturers and exporters. We are enjoying an excellent
reputation through 21 years of production experience of time
attendance in China.
Q2: How many days can we get the products if placed purchase order?
Reply : In regularly, 2-3 working days for Sample and ready stock;
15 working days for production order after receiving of order
confirmation and deposit.
Q3: When was your company formed?
Reply : Since year 2000, the founders of Shenzhen Union Timmy
Technology Co., Ltd. (Timmy Technology) have been striving for
independent research and development of biometric verification
algorithms, vertical three roller gates, access control system,
one-card management system and the production of biometric
verification SDK which was initially widely applied in PC security,
time attendance and identity authentication fields.
Q4: Any payment method are acceptable?
Reply: T/T, PayPal and .
Q5: Can we print our brand name for OEM?
Reply: Logo printed and client customization are our expertise for
ordering at our MOQ 100 pcs.
Q6: Can we get some samples?
Reply: We are honored to offer samples for your evaluation.
Q7: How does your factory QC?
Reply: Quality check is our first priority for our customers
without any careless.
Furthermore, Timmy Technology has been recognized as a "National
High-tech Enterprise" for 3 consecutive years, passed ISO9001
certification, and the products have passed FCC/CE/ROHS
certification, etc
Should you have any inquiry, feel free to contact us
Face recognition machines Warranty
Timmy warrantees all the hardware products to be free from
manufacturing defects. It also warrants this hardware product
against defects in materials and workmanship that result in a
material deviation from the applicable published Timmy technical
specifications or customized specifications for that particular
client.
